    Embedded HF RFID Reader Writer ISO15693 ISO14443A / B ISO18000-3M3 and NFC

    Ask Lasest Price
    Brand Name : Andea Electronics
    Model Number : RL866
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 500~1000 Sets Per Month
    Delivery Time : 3~5 work days
    • Product Details
    • Company Profile

    Embedded HF RFID Reader Writer ISO15693 ISO14443A / B ISO18000-3M3 and NFC

    Embedded HF PCB RFID Reader Writer ISO15693 ISO14443A/B ISO18000-3M3 and NFC

    Product Introduction:


    RL866 is a built-in design HF reader writer which support multiple protocols ISO15693, ISO14443A/B, ISO18000-3M3 and NFC. For its slim body, it could be easily embedded in those device which needs to integrate RFID technology.


    Due to its common USB and RS232 communication interface, the host computer can exchange data with this device smoothly and it helps to cut down the engineer's development work. Working voltage is DC 5V and it is a cost-efficient USB interface plug and play RFID reader with integrated Keyboard Emulation (KEMU). It supports to read multiple tags at one scan for the anti-collision algorithm. This reader already passed and FCC certification which is popular in America and European market.


    Product Features:


    • Support multiple protocols ISO15693, ISO14443A/B, ISO18000-3M3 and NFC

    • USB interface plug and play

    • Integrated keyboard emulation (KEMU) function

    • All-in-one embedded RFID reader writer

    • MIFARE S50/S70 RFID reader writer

    • ICODE SLI/SLIX/SLIX2 RFID reader writer

    • ICODE ILT Series RFID reader writer

    • NFC Forum Tag RFID reader writer

    Technical Specification
    ModelRL866
    Operating Frequency13.56 MHz
    Compatible ProtocolsISO 15693, ISO 14443A/B, ISO 18000-3M3
    Compatible Tags
    • NFC Forum Type 1: Innovision Topaz512
    • NFC Forum Type 2: Mifare Ultralight, Mifare Ultralight C, Mifare Ultralight EV1, NTAG21x.
    • NFC Forum Type 3: Sony Felica [only support Polling]
    • NFC Forum Type 4: Mifare DESFire EV1
    • NFC Forum Type 5: ICODE SLI ,ICODE SLIX ,ICODE SLIX2 ,Tag-it HF- I plus
    • Mifare Classic Type: Mifare S50, Mifare S70 ,Mifare Mini
    • ISO18000-3M3 Type: ICODE ILT
    • ST ISO14443B Type: SRIX4K, SRI512, ST25TB512-AC
    Communication InterfaceUSB & RS232
    Reading RangeISO 1569328cm
    ISO 14443A15cm
    ISO 18000-3M320cm
    Plug & PlaySupport
    Keyboard EmulationSupport
    Anti-collision AlgorithmSupport
    Working VoltageDC 5V (USB Power Supply)
    Max Power Consumption1.7W
    MaterialPCB
    Dimension250*170mm
    Weight130g

    Product Application:

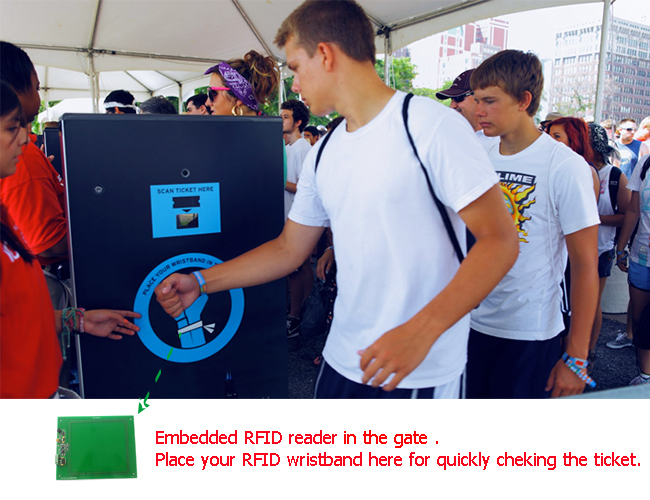

    Being embedded in device needs to integrate with RFID technology.
