    RS232 Interface And HF Embedded USB RFID Reader Writer Multiple Protocols

    Ask Lasest Price
    Brand Name : Andea Electronics
    Model Number : RL866
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 500~1000 Sets Per Month
    Delivery Time : 3~5 work days
    • Product Details
    • Company Profile

    RS232 Interface And HF Embedded USB RFID Reader Writer Multiple Protocols

    HF Embedded USB And RS232 Interfa RFID Reader Writer Multiple Protocols

    Product Introduction:


    RL866 is a slim PCB RFID reader writer which could be easily embedded in those device which needs to integrate RFID technology in accordance ISO14443A/B, ISO15693, ISO18000-3M1, ISO18000-3M3 protocols.

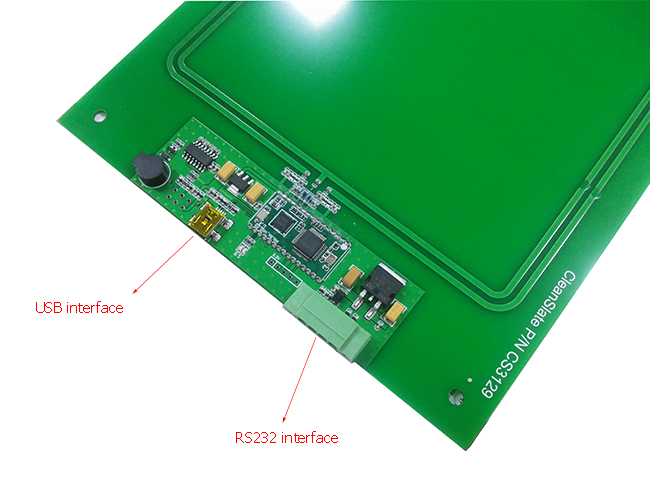

    The reader is designed with two difference communication interfaces: USB and RS232. Users could choose one of the interfaces to meet their demands. USB interface supports plug and play function, no need extra power supply and RS232 interface needs to link with extra DC12 power supply. and FCC certificates are available.


    Product Features:


    • Support multiple protocols ISO15693, ISO14443A/B, ISO18000-3M3 and NFC

    • USB & RS232 double communication interface

    • Micro power reader and writer at 13.56MHz

    • Buzzer and light alarm function

    Technical Specification
    ModelRL866
    Operating Frequency13.56 MHz
    Compatible ProtocolsISO 14443A/B, ISO 15693, ISO18000-3M1, ISO 18000-3M3
    Compatible Tags
    • NFC Forum Type 1: Innovision Topaz512
    • NFC Forum Type 2: Mifare Ultralight, Mifare Ultralight C, Mifare Ultralight EV1, NTAG21x.
    • NFC Forum Type 3: Sony Felica [only support Polling]
    • NFC Forum Type 4: Mifare DESFire EV1
    • NFC Forum Type 5: ICODE SLI ,ICODE SLIX ,ICODE SLIX2 ,Tag-it HF- I plus
    • Mifare Classic Type: Mifare S50, Mifare S70 ,Mifare Mini
    • ISO18000-3M3 Type: ICODE ILT
    • ST ISO14443B Type: SRIX4K, SRI512, ST25TB512-AC
    Communication InterfaceUSB & RS232
    Reading RangeISO 1569328cm
    ISO 14443A15cm
    ISO 18000-3M320cm
    Plug & PlaySupport
    Keyboard EmulationSupport
    Anti-collision AlgorithmSupport
    Working VoltageDC 5V (USB Power Supply) / DC 12V (RS232)
    Max Power Consumption1.7W
    MaterialPCB
    Dimension250*170mm
    Weight130g

    Product Application:


    Built-in design for being integrated in the equipments to develop RFID functions.
