    USB Interface Fixed RFID Reader ISO 15693 Standard Reading Range 65CM

    Ask Lasest Price
    Brand Name : Andea Electronics
    Model Number : RD201-U
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 500~1000 Sets Per Month
    Delivery Time : 3~5 work days
    • Product Details
    • Company Profile

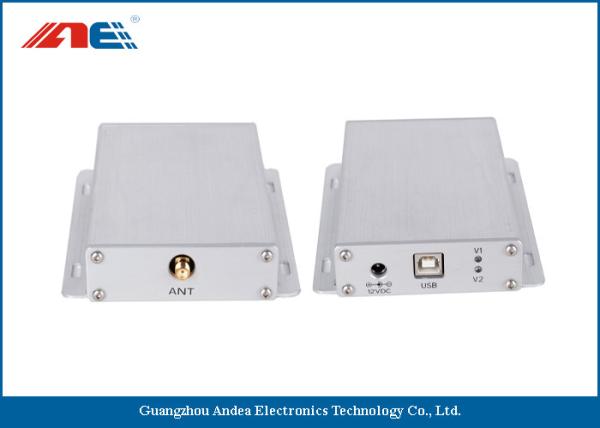

    USB Interface Fixed RFID Reader ISO 15693 Standard Reading Range 65CM

    ISO15693 Fixed RFID Reader With USB Interface Reading Range 65CM

    Product Introduction:


    RD201-U HF medium power stationary RFID reader is compatible with ISO 15693 and ISO 18000-3 protocols. Radio frequency power of this reader is adjustable from 0.25W to 1.5W according to the application files. Its high identification rate and advand anti-collision algorithm allows fast processing, reading speed is up to 50 Pieces per second. USB communication interface is easy for connection with other device. There are host mode and scan mode two work modes for choice accoding to your needs.


    Product Features:


    • Operating Frequency: 13.56 MHz
    • Compatible Protocols: ISO15693 and ISO18000-3M1
    • RF Power: 0.25-1.5W
    • Antenna Interface: SMA
    • Communication Interface: USB
    • Anti-collision Algorithm: Support
    • Reading Speed: Up to 50pcs per second
    • Reading Range: 65cm (Related with the antenna and tag)
    • Working Voltage: DC12V, ≤300mA
    • Max Power Consumption: 2.8W
    • Be integrated with 1 relay output
    • Host and Scan Mode: Support (set through software)
    • Support EMI detection to check surrounding interference
    • Support to turn off radio frequency automatically when at task idle

    Technical Specification
    ModelRD201-U
    Operating Frequency13.56 MHz
    Compatible ProtocolsISO 15693 and ISO 18000-3M1
    RF Power0.25~1.5W
    Antenna InterfaceSMA
    Communication InterfaUSB
    Working VoltageDC 12V
    Max Power Consumption2.8W
    EMI DetectionSupport
    Housing MaterialAluminum Alloy
    Dimension136*105*25mm
    Weight280g


    Product Application:


    Andea Electronics mid range HF RFID reader is not only have been applied sucssfully to Logistics,Anti-counterfeit, Industrial Production Process Control, but also have play an active role in Library RFID Intelligent Management, Self-service Library and Entertainment Industry, etc.
