Product Introduction:
This NFC RFID desktop reader writer adopts plug and play design
comging with an USB 2.0 cable and type B connector with which the
device can be connected to the host fast and easy. Power supply for
the reader is provided via the USB cable so no external power
supply is needed.
It is also a multi-protocols reader which supports ISO 15693, ISO
14443A/B, ISO 18000-3M3 protocols, which could be widely used for
identification systems, card personalization, production test and
chip encoding, access control, process or transaction control,
payment systems & loyalty schemes, etc.
The simple commands of the intelligent RFID reader module
facilitate a fast application development and a short
time-to-market period.
| Technical Specification |
| Model | RL863 |
| Operating Frequency | 13.56 MHz (±7KHz) |
| Compatible Protocols | ISO15693, ISO 14443A/B, ISO 18000-3M3 and NFC |
| Compatible Tags | - NFC Forum Type 1: Innovision Topaz512
- NFC Forum Type 2: Mifare Ultralight, Mifare Ultralight C, Mifare
Ultralight EV1, NTAG21x.
- NFC Forum Type 3: Sony Felica [only support Polling]
- NFC Forum Type 4: Mifare DESFire EV1
- NFC Forum Type 5: ICODE SLI ,ICODE SLIX ,ICODE SLIX2 ,Tag-it HF- I
plus
- Mifare Classic Type: Mifare S50, Mifare S70 ,Mifare Mini
- ISO18000-3M3 Type: ICODE ILT
- ST ISO14443B Type: SRIX4K, SRI512, ST25TB512-AC
|
| Communication Interface | USB |
| Reading Range | ISO 15693 | 16cm |
| ISO 14443A | 10cm |
| ISO 18000-3M3 | —— |
| Plug & Play | Support |
| Keyboard Emulation | Support |
| Anti-collision Algorithm | Support |
| Working Voltage | DC 5V (USB power supply) |
| Max Power Consumption | 0.65W |
| Dimension | 105*70*10mm |
| Weight | 53g |

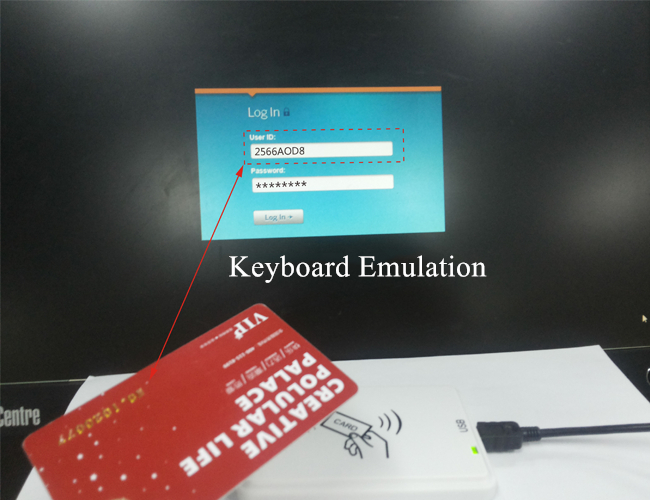

RL863 is a reader writer supporting keyboard emulation
What is Near Field Communication (NFC)?
Near-field communication (NFC) is a set of communication protocols
that enable two electronic devices, one of which is usually a
portable device such as a smart phone, to establish communication
by bringing them within 4 cm (1.6 inch) of each other.
NFC devices are used in contactless payment systems, similar to
those used in credit cards and electronic ticket smart cards and
allow mobile payment to replace/supplement these systems. NFC is
used for social networking, for sharing contacts, photos, videos or
files. NFC-enabled devices can act as electronic identity documents
and key cards. NFC offers a low-speed connection with simple setup
that can be used to bootstrap more capable wireless connections.
About ICODE ILT:
The ICODE ILT is a product out of the Semiconductors ICODE product
family. The entire ICODE product family offers anti-collision
functionality. This allows a reader to simultaneously operate
multiple labels/tags within its antenna field. A ICODE ILT based
label/tag requires no external power supply.
Typical Applications:
- Identification systems
- Card personalization
- Production test and chip encoding
- Access control
- Process or transaction control
- Payment systems & loyalty schemes
