Brand Name : | Andea Electronics |
Model Number : | DA3807G |
Payment Terms : | T/T, Western Union, Paypal |
Supply Ability : | 500~1000 Sets Per Month |
Delivery Time : | 3~5 work days |
Product Introduction:

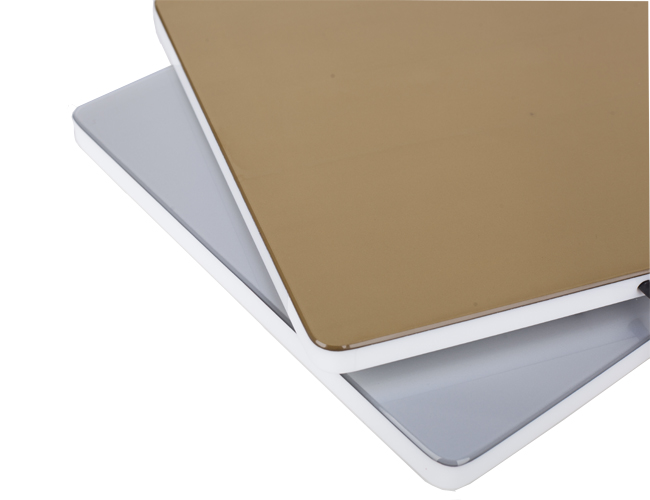

DA3807G is designed as a particularly flat external antenna for contactless data exchange with HF transponders and impresses with its excellent performance and elegant design.The read range of individual transponders can be up to 50 cm.
DA3807G has a coaxial cable and can be operated with a reader,
immediately. Beside the variant with PCB and acrylic housing, the
product is also available as an antenna module without housing.
Technical Specification | |
Model | DA3807G |
Operating Frequency | 13.56 MHz |
RF Interface | SMA |
Reading Range | 50cm |
Antenna Impedance | 50Ω |
Max Support Power | 4W |
Feeder Length | 2.5m |
Housing Material | PCB and Acrylic |
Dimension | 300*300*23mm |
Weight | 1870g |
Product Application:
Suitable in offis or libraries for file and document tracking and
capturing loaned on the issue and redemption.
![]() |
