    Silver Color Flat 13.56MHz RFID Reader Antenna High Read Rate 300 * 300 * 23MM Size

    Ask Lasest Price
    Brand Name : Andea Electronics
    Model Number : DA3807S
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 500~1000 Sets Per Month
    Delivery Time : 3~5 work days
    • Product Details
    • Company Profile

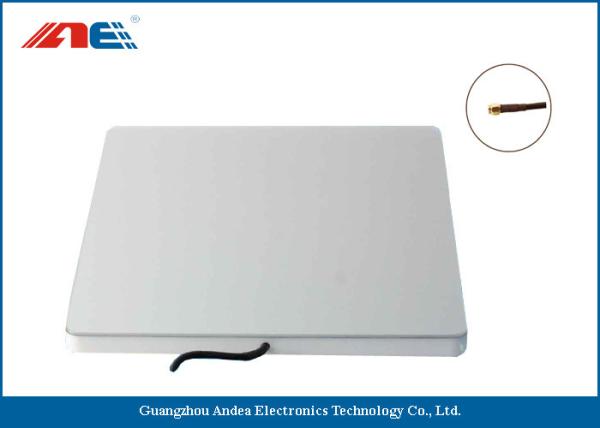

    Silver Color Flat 13.56MHz RFID Reader Antenna High Read Rate 300 * 300 * 23MM Size

    Silver Color RFID Flat Antenna High Frequency Size 300 * 300 * 23MM

    Product Introduction:


    Andea Electronics offers a selection of 13.56 MHz RFID Antennas with key protocols designed to be used in conjunction with 13.56 RFID readers to ensure high read rates and optimized performance. These kinds of antennas are available at the 13.56 MHz frequency and supports various protocols such as ISO15693 and ISO18000-3. The 13.56 MHz antennas are able to optimize particular environments to obtain the highest possible read rate when paired with the appropriate reader. Moreover, these devices have 50Ω impedance, which means that they have effective resistance to alternating current, arising from the combined effects of Ohmic resistance. Additionally, our antennas have the SMA RF interface and have a storage temperature capacity that can range from -25 °C to 70 °C. Another key characteristic of the 13.56 MHz antennas is that most of them have a maximum power of 4W, nevertheless, some of them have a maximum power of 1.5W. Our antennas offer a read range 50CM depending on the specific characteristics of the device.


    Technical Specification
    ModelDA3807S
    Operating Frequency13.56 MHz
    RF InterfaceSMA
    Reading Range50cm
    Antenna Impedance50Ω
    Max Support Power4W
    Feeder Length2.5m
    Housing MaterialPCB and Acrylic
    Dimension300*300*23mm
    Weight1870g


    Product Application:


    Suitable in offis or libraries for file and document tracking and capturing loaned on the issue and redemption.

    Product Tags:

    hf rfid antenna



    rfid antenna
