    High Frequency RFID Pad Antenna For Detecting RFID Tag Reading Range 50CM

    Ask Lasest Price
    Brand Name : Andea Electronics
    Model Number : DA3807G
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 500~1000 Sets Per Month
    Delivery Time : 3~5 work days
    • Product Details
    • Company Profile

    High Frequency RFID Pad Antenna For Detecting RFID Tag Reading Range 50CM

    High Frequency RFID Reader Antenna Pad Antenna Reading Range 50CM

    Product Introduction:

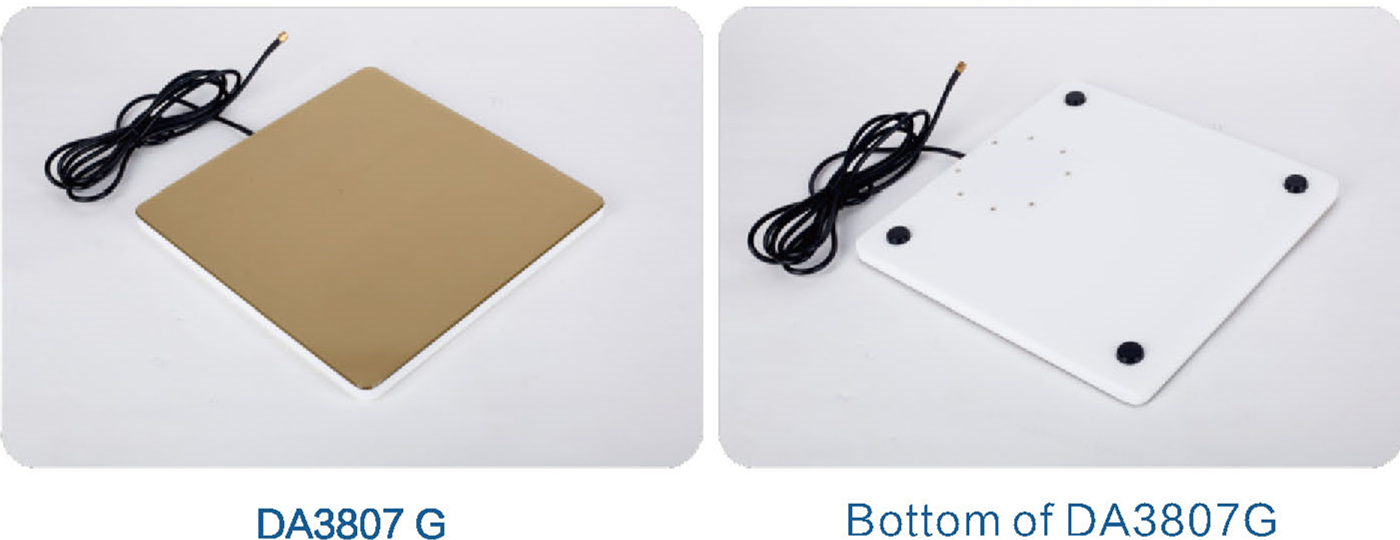

    DA3807 HF RFID antenna series are high-performance desktop pad antenna with attractive appearance (Golden and Silver). The surface is made of wear-resistance material and not easy to scratch. Tuned circuit is embedded to calibrate deviceation caused by different desktops and keep antenna in perfect condition. It is mainly applied to read labels in batch.


    The DA3807G is designed as a very flat and external antenna for contact-less data exchange with common HF transponders and is attractive with its outstanding performance and the modern design.


    With these features the antenna is suitable for desktop applications in offices and libraries to trace files or documents and to detect lend-able items at the check out or return point. The read range with single transponders could reach more than 50 cm.


    Technical Specification
    ModelDA3807G
    Operating Frequency13.56 MHz
    RF InterfaceSMA
    Reading Range50cm
    Antenna Impedance50Ω
    Max Support Power4W
    Feeder Length2.5m
    Housing MaterialAcrylic
    Dimension300*300*23mm
    Weight1870g


    Product Application:


    The 13.56 MHz RFID antennas enable efficient proximity RFID tag reading. These antennas can be used for many different applications such as long distance identification like industrial auto control system, production tracking, goods and livestock identification, and document management. Other common uses for the 13.56 antennas include batch reading, which makes them suitable for jewelry inventory, chip management, retail, and settlement.

    Product Tags:

    hf rfid antenna



    rfid pcb antenna
