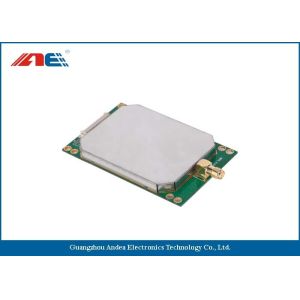

    Mid Range RFID Reader Module ISO15693 Communication Interface RS232

    Ask Lasest Price
    Brand Name : Andea Electronics
    Model Number : M202
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 500~1000 Sets Per Month
    Delivery Time : 3~5 work days
    • Product Details
    • Company Profile

    Mid Range RFID Reader Module ISO15693 Communication Interface RS232

    Mid Range RFID Reader Module ISO15693 Communication Interface RS232

    Product Introduction:


    M202 high frequency medium range RFID reader module supports ISO 15693 and ISO 18000-3 mode 1 protocols. With high-sensitivity and fast anti-collision algorithm, its identify speed is up to 50 Pieces per second. It adopts low power design, mainly being embedded in pad reader, self-service kiosk, etc.


    Product Features:


    • Operating Frequency: 13.56MHz
    • Compatible Protocols: ISO15693 and ISO18000-3M1
    • Radio Frequency Power: 0.25-1.5W
    • Communication Interface: RS232
    • Reading Range: 65cm (Related with the antenna and tag)
    • Anti-collision Algorithm: Support
    • Reading Speed: Up to 50pcs per sond
    • Working Voltage: DC12V, ≤400mA
    • Max Power Consumption: 3.5W
    • Host Mode and Scan Mode: Support (set through software)
    • Support EMI detection to check surrounding interference
    • Support to turn off radio frequency automatically when at task idle

    Technical Specification
    ModelM202
    Operating Frequency13.56 MHz
    Compatible ProtocolsISO 15693 and ISO 18000-3M1
    RF Power0.25-1.5W
    Communication InterfaceRS232
    Reading Range65cm
    Working VoltageDC 12V
    Working Current≤400mA
    Max Power Consumption3.5W
    EMI DetectionSupport
    Dimension81*52*8mm
    Weight31g


    Product Application:


    • Identification of files and documents
    • Identification of rented goods
    • Libraries
    Andea Electronics offers a selection of embedded RFID readers designed to aid you in adding RFID read/write capabilities into your own devices. With either a versatile or small form factor, our embedded readers enable you to quickly and easily integrate RFID technology to read RFID tags in any application.
