    Medium Range RFID Reader Antenna Loop Shape 13.56MHz For Parcel Sorting System

    Medium Range RFID Loop Antenna High Frequency 13.56MHz Max Power 6W

    Product Introduction:


    This high frequency RFID antenna is designed for use with medium to high power readers and is intended for applications with demands for long distance identification such as industrial auto control system, production tracing, goods and livestock identification, and document management. It is compliant with ISO15693 and ISO18000-3 standards. This antenna offers a long reading distance of up to 100 cm when dual antennas are used.


    HF Antenna ANT02 is distributed, already adjusted for most applications ex works. By means of jumpers the antenna can be adjusted to changing surrounding conditions, optimally.


    Features:


    • Operating frequency: 13.56 MHz
    • Supports ISO15693 and ISO18000-3 protocols
    • Long reading distance; able to read up to 100 cm with double antenna
    • Easy installation mounting kit

    Technical Specification
    ModelANT02
    Operating Frequency13.56 MHz
    RF InterfaceSMA
    Reading Range65cm
    Antenna Impedance50Ω
    Max Support Power6W
    Feeder Length2m
    Housing MaterialABS
    Dimension350*330*22mm
    Weight770g


    Product Application:


    Typical applications for the antenna are libraries, document tracking, video shops, logistics at conveyor belts or sorting systems, access control and industrial data acquisition. The antenna can be employed in indoor- and outdoor use.

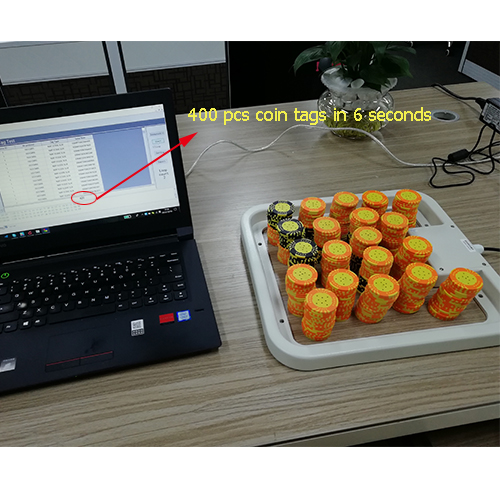

    Application Picture :
