Adjustable RF Power Integrated RFID Pad Reader , Lightweight 13.56 MHz RFID Reader Writer

Guangzhou Andea Electronics Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Adjustable RF Power Integrated RFID Pad Reader , Lightweight 13.56 MHz RFID Reader Writer from wholesalers

    Buy cheap Adjustable RF Power Integrated RFID Pad Reader , Lightweight 13.56 MHz RFID Reader Writer from wholesalers
    • Buy cheap Adjustable RF Power Integrated RFID Pad Reader , Lightweight 13.56 MHz RFID Reader Writer from wholesalers

    Adjustable RF Power Integrated RFID Pad Reader , Lightweight 13.56 MHz RFID Reader Writer

    Ask Lasest Price
    Brand Name : Andea Electronics
    Model Number : RD202BL
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 500~1000 Sets Per Month
    Delivery Time : 3~5 work days
    • Product Details
    • Company Profile

    Adjustable RF Power Integrated RFID Pad Reader , Lightweight 13.56 MHz RFID Reader Writer

    13.56MHz Desktop Pad RFID Antenna Integrated With Reader RF Power Adjustable

    Product Introduction:


    RD202BL is an all-in-one desktop RFID reader which is compatible with ISO15693 and ISO18000-3M1 protocols. It is a low cost and low power consumption model specially designed for reading one tag each time. It is allowed to be used on metal, which is rarely seen in an HF reader.


    Product Features:


    • Operating Frequency: 13.56 MHz
    • Support ISO 15693 and ISO 18000-3M1 protocols
    • Reading Range: 18cm (The range is also related to the tag performance)
    • RF Power 0.25~1.5W
    • Integrated design with reader and antenna
    • Metal shielding design to work normally even it is plad on the metal desktop
    • Support host and scan work mode (Setup through software)
    • Be capable of automatically turning off RF when at task idle

    Technical Specification
    ModelRD202BL
    Operating Frequency13.56 MHz
    Compatible ProtocolsISO 15693 / ISO 18000-3
    RF Power0.25~1.5W
    Communication InterfaceRS232
    Reading Range40cm
    Misreading Range≤10cm
    Working VoltageDC 12V
    Max Power Consumption3.5W

    Metal Shielded Design

    Support

    Housing MaterialAcrylic And Aluminum Alloy
    Dimension410*300*29mm
    Weight3150g


    Product Application:


    This compact, modern designed reader/writer is specially designed for RFID library management, self-service books borrow and return, etc.

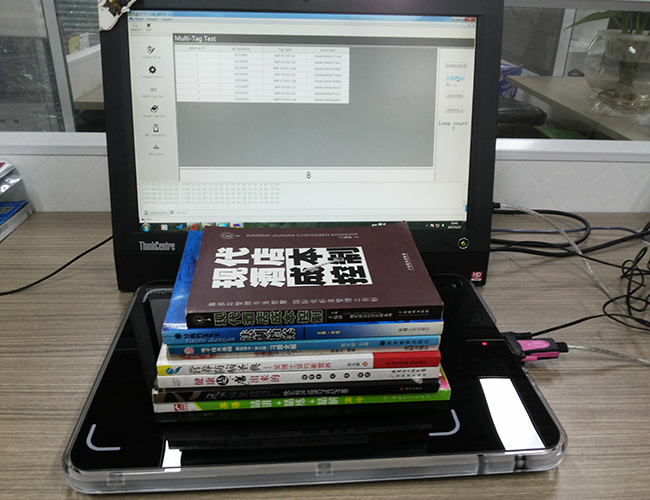

    Demo Test Picture :



    Quality Adjustable RF Power Integrated RFID Pad Reader , Lightweight 13.56 MHz RFID Reader Writer for sale
