    Single Channel Mid Range RFID Reader ISO15693 Reading Range 65CM

    Ask Lasest Price
    Brand Name : Andea Electronics
    Model Number : RD201
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 500~1000 Sets Per Month
    Delivery Time : 3~5 work days
    • Product Details
    • Company Profile

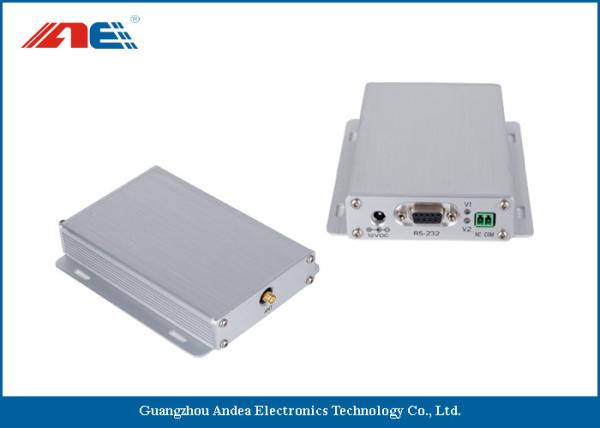

    Single Channel Mid Range RFID Reader ISO15693 Reading Range 65CM

    Single Channel Mid Range RFID Reader ISO15693 Reading Range 65CM

    Product Introduction:


    RD201 HF mid range fixed RFID reader is compatible with ISO 15693 and ISO 18000-3 protocols. Radio frequency power of this reader is 1.5W. Its high identification rate and advand anti-collision algorithm allows fast processing, reading speed is up to 50 Pieces per second. There are host mode and scan mode two work modes for choice accoding to your needs. Software development kit is provided for further development.


    Product Features:


    • Be compatible with ISO15693 and ISO18000-3M1 protocols
    • RF Power is 1.5W, reading range about 65cm (Related with the antenna and tag)
    • Perfect anti-collision algorithm, 100% identification rate, reading speed is over 50tags/s
    • There is one general purpose input/output
    • Support standard 50ohm RFID antenna with effective reading distance up to 65cm
    • Support Host and Scan work mode
    • Support EMI detection to check surrounding interference
    • Support to turn off radio frequency automatically when at task idle
    • Small outline and low power dissipation design

    Technical Specification
    ModelRD201
    Operating Frequency13.56 MHz
    Compatible ProtocolsISO 15693 and ISO 18000-3M1
    RF Power1.5W
    Antenna InterfaceSMA
    Communication InterfaceRS232 / RS485
    Working VoltageDC 12V
    Max Power Consumption2.8W
    GPIO1 Relay
    EMI DetectionSupport
    Housing MaterialAluminum Alloy
    Dimension136*105*25mm
    Weight270g


    Product Application:


    This reader is suitbale for library management, inventory, warehouse management, drug management and anti-­ counterfeiting, customer benefit programs, and general smart card management systems, etc.
