    HF RFID Card Reader Writer 13.56MHz Communication Interface RS232 / RS485 For Parking System

    Ask Lasest Price
    Brand Name : Andea Electronics
    Model Number : RD2104
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 500~1000 Sets Per Month
    Delivery Time : 3~5 work days
    • Product Details
    • Company Profile

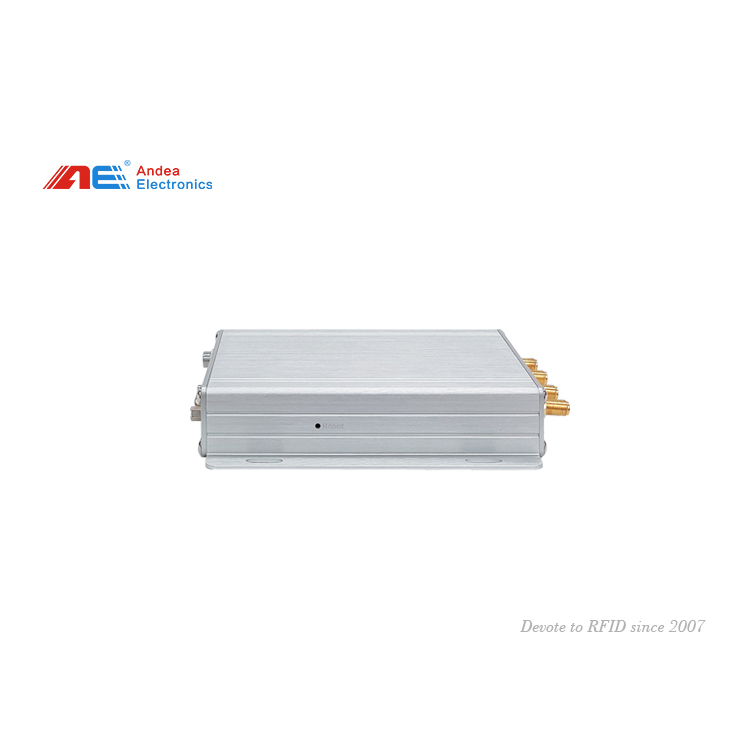

    HF RFID Card Reader Writer 13.56MHz Communication Interface RS232 / RS485 For Parking System

    HF RFID Card Reader Writer 13.56MHz Communication Interface RS232/RS485 for Parking System

    Product Introduction:


    Andea HF Mid Range Reader series owns high sensitivity and fast collision-resistance algorithm.


    RD2104 HF medium power RFID reader has high sensitivity and fast anti-collision algorithm, which operates at a frequency of 13.56 MHz and are designed to suit any business application and has wide choices depending upon the user’s specification and needs. Anti-collision algorithm allows fast processing, reading speed is up to 70 pieces per second.


    Product Features:


    • Support ISO 15693 and ISO 18000-3M1 standard.
    • RF power: 0.25~1.5W (adjustable).
    • Antenna interface: SMA*4
    • Fast anti-collision processing algorithm; the speed of reading the tag is up to 70pcs / sec.
    • Reading and writing range: single antenna can reach 75cm (antenna size: 560*650mm); (this distance is related to card performance and antenna size).
    • Communication interface: RS232, RS485, Ethernet, USB.
    • Support noise detection, can detect the environment whether there is interference.
    • Power supply: 12V DC.
    • It has multiple working modes which can be configured through software tools.
    • With short circuit protection and overheat protection function.

    Parameter/ModelRD2101RD2104/RD2104-F11
    Operating Frequency13.56 MHz
    Support StandardISO/IEC 15693 and ISO/IEC 18000-3M1
    RF Power0.25~1.5W(configurable, the system default setting is1.5W)
    Antenna InterfaceSMA×1SMA×4
    Communication InterfaceRS232 /RS485/USB/ Ethernet
    Working Modehost mode and auto read mode(configurable)
    Supply Voltage12VDC
    Maximum Power Consumption10W
    Shell Materialaluminum alloy
    Dimensions123×105×25mm
    Maximum Operating Temperature40℃


    Product Application:


    Library, Archive, Production Automation, Laundry Automation Management, Drug Tracking, etc.
