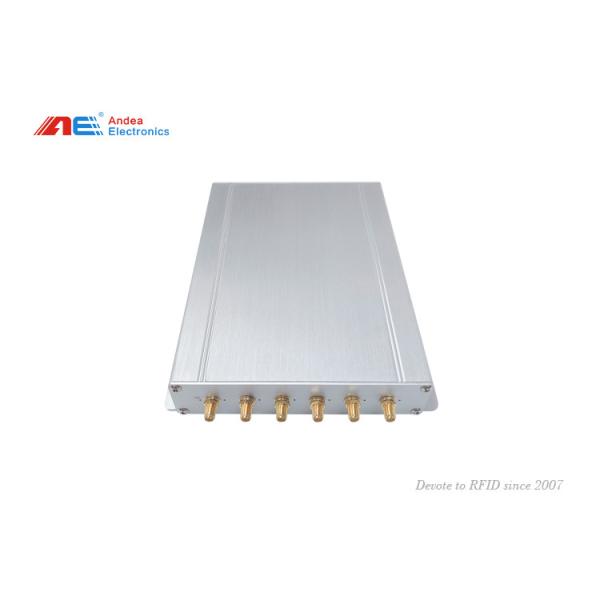

    ISO15693 / ISO18000-3M1 RFID Card Reader HF RFID Antenna Long Reading Distance

    Ask Lasest Price
    Brand Name : Andea Electronics
    Model Number : RD5206
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 500~1000 Sets Per Month
    Delivery Time : 3~5 work days
    • Product Details
    • Company Profile

    ISO15693 / ISO18000-3M1 RFID Card Reader HF RFID Antenna Long Reading Distance

    ISO15693/ISO18000-3M1 RFID Card Reader HF RFID Antenna Long Reading Distance

    Product Introduction:


    RD5206 readers has three communication interfaces: Ethernet LAN port, RS232 interface, USB interface, users can choose different communication interfaces to connect according to their needs, as described below:

    ①Connect PC and reader via network cable: use a cross-connect network cable to connect the PC and the reader; or connect the PC and the reader through a network switch. Note: If the PC supports automatic cross direct connection, you can use a common network cable to connect.

    ②Connect PC and reader via RS232 serial cable: this device can be connected via RS232 serial cable or USB To RS232 converter.

    ③Connect the PC and the reader via the USB cable.


    Product Features:


    • Support ISO 15693 and ISO 18000-3M1 standard.
    • RF power: 1~8W(adjustable).
    • Antenna interface: adopts multi-antenna interface design, which can connect up to 30 antennas;
    • Support noise detection, be able to detect whether the environment has interference.
    • Fast anti-collision processing algorithm; the speed of reading the tag is up to 70pcs / sec
    • Reading and writing range: single antenna can reach 118cm (antenna size: 560*650mm); (this distance is related to card performance and antenna size).
    • Communication interface: RS232, RS485, Ethernet, USB,CAN.
    • With short circuit protection and overheat protection function.
    • Support antenna standing wave detection.

    Parameter/ModelRD5201RD5206RD5212RD5224RD5230
    Operating Frequency13.56 MHz
    Support StandardISO/IEC 15693 and ISO/IEC 18000-3M1
    RF Power1~8W(configurable, the system default setting is 4W)
    Antenna InterfaceSMA×1SMA×6SMA×12SMA×24SMA×30
    Communication InterfaceRS232, RS485, Ethernet, USB
    Working Modehost mode and auto read mode(configurable)
    Supply Voltage12V DC
    Maximum Power Consumption≤35W
    Shell Materialaluminum alloymetal plate
    Dimensions200×168×33mm308.5×207×38mm438.6×207×38mm
    Maximum Operating Temperature50℃



    Product Application:


    RFID jewelry management, shop settlement, personnel identification, warehouse logistics, production automation, etc.
