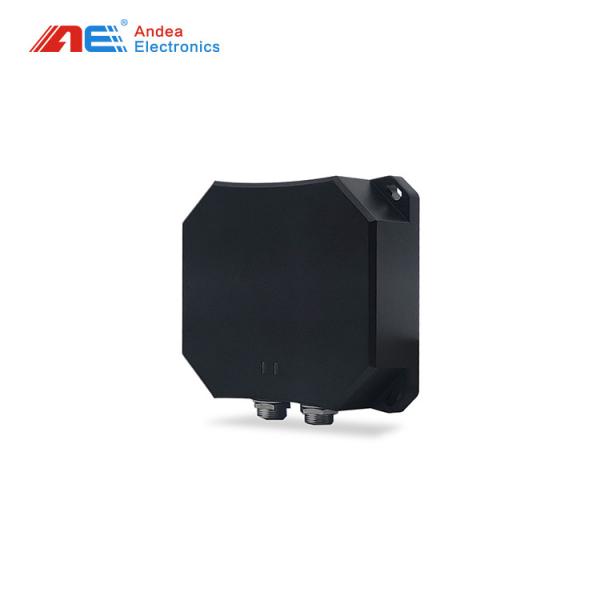

ISO15693 Standard Medium Power Industrial rfid reader Modbus RS232
Communication
Quick detail of Medium Power Industrial rfid reader:
Support Standard:ISO 15693
Communication Interface:M12A(4pin M) + M12A(5pin M);
Communication mode:Modbus RS232;
Waterproof/ dustproof:IP67;
Fixed type:4*M4 screw;
Specification of Medium Power Industrial rfid reader:
| Specification | |
| Support Standard | ISO 15693 |
| Operating Frequency | 13.56MHz |
| Reading Range | 0-180mm |
| Communication mode | RS232(Modbus RTU) |
| Communication rate | 9600~115200 bit/s |
| Power Supply | 24V DC(9-30V) |
| Current | <0.30A@24V DC |
| Physical parameters | |
| Dimension | 100*100*35mm |
| Weight | 160g |
| Fixed type | 4*M4 screw |
| Housing Material | ABS and Metal plate |
| Color | Black |
| Indicator light | LED*2 |
| Interface | M12A(4pin M) + M12A(5pin M) |
| Application environment | |
| Working Temperature | -40℃～+85℃ |
| Humidity | 5%～95%RH |
| Waterproof/dustproof | IP67 |
Feature of Medium Power Industrial rfid reader:
Support Modbus communication mode,Convenience to interface with
various PLCs.
With high sensitive read-write performance.
Integrated design,easy to installation and deployment.
With IP67 protection grade can adapt to harsh environments.
Built-in-one design,have strong anti-interference ability to EMC.
Advantages of Medium Power Industrial rfid reader:
Easy to use
Fast data transfer
Non expensive
Small size
Medium Power Industrial rfid readerApplication:
Efficient RFID identification solutions for process optimization,
help improve tool recognition and complete traceability of
production and logistics processes.
Logistics Automation
The combination of decentralized solutions for I/O, safety,
identification and control with IP67 rating makes us be your ideal
partner for automating logistics processes.
Power Battery Assembly
Install the reader at the RFID collection point, and the on-line
station collection point reads the RFID tag in the material box to
obtain the information of slots in the material box (each slot is
equipped with a cell with different voltage), The voltage
value/grade of the test cell is written into the material box RFID
tag at the test station of the voltage cell. When the cell is
classified, read the RFID tag information of the material box and
connect the robot in real time to automaticaly put the cell into
the corresponding cell transport track. After the robot takes down
the cell with different gear from the transport track and puts them
into the same material box it will write the cell gear information
into the RFID tag of the material box. Through the operation of
each station on the RFID tag, a series of processes such as cell
division, transportation, encapsulation, and assembly are completed
in the process of cell assembly.
Dimension Drawing(mm):
Installation Instruction:
This reader use four M4 screws to fixing. According to the
installation environment of the site,we can support bracket to
install.If there has Metal plate beside the product,please make
sure that the distance between reader and Metal plate has more than
15mm,or it will influence the performance of reading and writing.
When there are more than two readers to be installed, the distance
between the readers needs to be greater than 850mm.
FAQ
1.How we can trust you?
We are Alibaba Trade Assurance Supplier and 2 years Ali Gold
Supplier
We focus on HF RIFD equipment for 10 years.
Our products have 17patens and copyrights certificates.
Our company has approved ISO9001-2008 quality management system
certificate.
Our company is awarded High and New Technology Enterprise and
Science and Technology Innovation Small Giant Enterprise by Chinese
government.
2. What's your MOQ?
Big Order or Sample Order is accepted by our company.
We understanding new customers may take sample testing to know our
quality and service.
3. What’s your delivery time?
Around 2~10 working days according to exact order quantity and
stock situation.
4. Whether your products could be customized?
Yes,for sure. Please talk to sales about exact requirements.
Andea offer the OEM or ODM service.
