HF Medium Power Modbus RTU232 Communication Industrial RFID Reader
Support ISO 15693 Standard
Quick detail of HF Medium Power Modbus RTU232 Communication Industrial RFID Reader:
Communication mode:Modbus RTU232;
Communication Interface:M12A(4pin M) + M12A(5pin M);
Support Standard:ISO 15693;
Waterproof/ dustproof:IP67;
Fixed type:2*M5 screw;
Specification of HF Medium Power Modbus RTU232 Communication Industrial RFID Reader:
| Specification | |
| Support Standard | ISO 15693 |
| Operating Frequency | 13.56MHz |
| Reading Range | 0-140mm |
| Communication mode | Modbus RTU232 |
| Communication rate | 9600~115200 bit/ |
| Power Supply | 24V DC(9-30V) |
| Current | <0.30A@24V DC |
| Physical parameters | |
| Dimension | 360*83*28mm |
| Weight | 580g |
| Fixed type | 2*M5 screw |
| Housing Material | ABS and Metal plate |
| Color | Black |
| Indicator light | LED*2 |
| Interface | M12A(4pin M) + M12A(5pin M |
| Application environment | |
| Working Temperature | -40℃～+85℃ |
| Humidity | 5%～95%RH |
| Waterproof/dustproof | IP67 |
Feature of HF Medium Power Modbus RTU232 Communication Industrial RFID Reader:
Built-in-one design,have strong anti-interference ability to EMC.
Support Modbus communication mode,Convenience to interface with
various PLCs.
With high sensitive read-write performance.
Integrated design,easy to installation and deployment.
With IP67 protection grade can adapt to harsh environments.
Advantages of HF Medium Power Modbus RTU232 Communication Industrial RFID Reader:
Small size
Fast data transfer
Non expensive
Easy to use
HF Medium Power Modbus RTU232 Communication Industrial RFID Reader Application:
Engine Assembly Line
The reader can interface with various PLCs such as
Siemens,Schneider and Mitsubishi through the industrial bus
controller. By reading the RFID tag mounted on the tray,passing the
information to the PLC, Through the information of installation to
guide the assembly robot or the assembler to auto select the
appropriate part,the engine assembly efficiency can be greatly
improved.
Factory Automation
This product has always been a key player in the field of discrete
manufacturing with its strong portfolio comprising sensors,
connection and fieldbus technologies, RFID and control solutions.
Our comprehensive solutions help our customers to improve
efficiency, increase availability and minimize errors.
Power Battery Assembly
Install the reader at the RFID collection point, and the on-line
station collection point reads the RFID tag in the material box to
obtain the information of slots in the material box (each slot is
equipped with a cell with different voltage), The voltage
value/grade of the test cell is written into the material box RFID
tag at the test station of the voltage cell. When the cell is
classified, read the RFID tag information of the material box and
connect the robot in real time to automaticaly put the cell into
the corresponding cell transport track. After the robot takes down
the cell with different gear from the transport track and puts them
into the same material box it will write the cell gear information
into the RFID tag of the material box. Through the operation of
each station on the RFID tag, a series of processes such as cell
division, transportation, encapsulation, and assembly are completed
in the process of cell assembly.

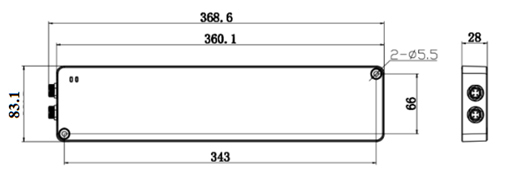

Dimension Drawing(mm):
Installation Instruction:
This reader use two M5 screws to fixing. According to the
installation environment of the site,we can support bracket to
install.If there has Metal plate beside the product,please make
sure that the distance between reader and Metal plate has more than
15mm,or it will influence the performance of reading and writing.
When there are more than two readers to be installed, the distance
between the readers needs to be greater than 850mm.
FAQ
1.How we can trust you?
We are Alibaba Trade Assurance Supplier and 2 years Ali Gold
Supplier
We focus on HF RIFD equipment for 10 years.
Our products have 17patens and copyrights certificates.
Our company has approved ISO9001-2008 quality management system
certificate.
Our company is awarded High and New Technology Enterprise and
Science and Technology Innovation Small Giant Enterprise by Chinese
government.
2. What's your MOQ?
Big Order or Sample Order is accepted by our company.
We understanding new customers may take sample testing to know our
quality and service.
3. Why choose us?
With us make Win-Win Business Situation!!!
24 *7 hours after sales service
We accept "PayPal", credit card to convenient customer make
payment.
Quality Assurance Contract
Full refund in case of bad quality
Online supports if any technique issue.
Both Small Order and Big Order are accepted.
Accept OEM/ODM order.
4. What’s your delivery time?
Around 2~10 working days according to exact order quantity and
stock situation.
5. What is the warranty?
3 years warranty for core device from the date of delivery,A
lifetime technical support.
We will return full money to customer if we did not shipping right
items as contract.
