Quick detail of RFID Card Writer UHF:
Andea Electronics RFID reader manufacturer provides the entire
breadth of RFID technologies. RFID Reader with integrated circuits
and antenna that can read the unique id or serial numberen of RFID
tag and card .RFID reader recived ID of card and transfer them to
database by radio waves.
- Support Standard:ISO18000-6C,EPC C1G2；
- Communication mode:Modbus RS485；
- Fixed type:4*M4 screw；
- Waterproof/ dustproof:IP67；
- Communication Interface:TNC(F) + M12A(5pin M)；
Specification of RFID Card Writer UHF:
Specification | |
Support Standard | ISO18000-6C,EPC C1G2 |
Operating Frequency | 860~960MHz |
Reading Range | 0-0.9m |
Communication mode | Modbus RS485 |
Communication rate | 9600~115200 bit/s |
Power Supply | 24V DC(9-30V) |
Current | <0.25A@24V DC |
Physical parameters | |
Dimension | 100*100*35mm |
Weight | 160g |
Fixed type | 4*M4 screw |
Housing Material | ABS and Metal plate |
Color | Black |
Indicator light | LED*2 |
Interface | TNC(F) + M12A(5pin M) |
Application environment | |
Working Temperature | -40℃～+85℃ |
Humidity | 5%～95%RH |
Waterproof/dustproof | IP67 |
Feature of RFID Card Writer UHF:
As each RFID applications has its unique requirements. Our RFID
readers widely used for identify, track tagged,supply
chain,inventory management,real time monitor,categorize and track
assets. When intergrate into the right RFID systems,the RFID reader
can identify objects quicker, more accurately, at a reduced overall
cost, and at various points of the object’s lifecycle.
Split design,have strong anti-interference ability to EMC.
With high sensitive read-write performance.
Support Modbus communication mode,Convenience to interface with
various PLCs.
Integrated design,easy to installation and deployment.
With IP67 protection grade can adapt to harsh environments.
RFID Card Writer UHF Application:
Optimize processes in Production and Logistics
Industrial RFID readers are especially common in the field of
intralogistics and so-called “gate applications”. The HF technology
is an important driver of digital production processes and the HF
RFID readers have been used successfully in production processes
for many years. Andea Electronics has UHF and HF frequencies
industrial RFID readers available for you.
Among other things, you can also use the read/write heads for fast
and reliable tracking of material in intralogistics, tracking of
individual products, tracking of transport carriers through the
production process.
RFID readers allow you to optimally manage machines, tools and
materials, reduce production costs, shorten delivery times, reduce
the number of errors and increase production efficiency. You can
achieve up-to-date data, available wherever and whenever we need
it, is the basis for effective decisions.
Industrial RFID readers collect data automatically , allowing you
to track material flows,monitor the efficiency of machinery and
equipment,monitor the condition of fixed assets.
Engine Assembly Line
The reader can interface with various PLCs such as
Siemens,Schneider and Mitsubishi through the industrial bus
controller. By reading the RFID tag mounted on the tray,passing the
information to the PLC, Through the information of installation to
guide the assembly robot or the assembler to auto select the
appropriate part,the engine assembly efficiency can be greatly
improved.
Dimension Drawing(mm):

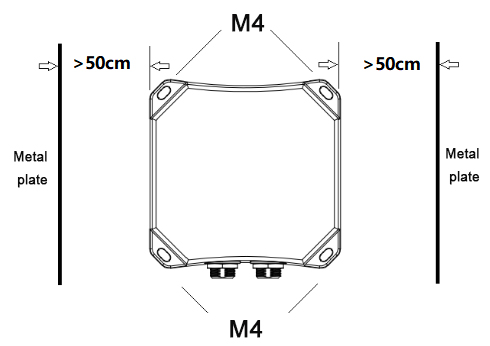

Installation Instruction:
This reader use four M4 screws to fixing. According to the
installation environment of the site,we can support bracket to
install.If there has Metal plate beside the product,please make
sure that the distance between reader and Metal plate has more than
50cm,or it will influence the performance of reading and writing.
When there are more than two readers to be installed, the distance
between the readers needs to be greater than 10m.
